Understanding Subfloor Ground Clearance and Ventilation Requirements

Posted on 4th December, 2024 in Flooring, Tips & Guides.
When installing STRUCTAflor, proper attention to subfloor ground clearance and ventilation is essential. These factors are not just technical specifications but critical elements that contribute to the durability of the flooring, the structural integrity of the building, and the health of its occupants.
Understanding Subfloor Ground Clearance and Ventilation Requirements

Why Ground Clearance and Ventilation Matter

Subfloor ground clearance and ventilation requirements are designed to:

  • The NCC outlines subfloor clearance and ventilation standards to ensure:
  • Termite treatment inspections can be conducted when necessary.
  • The risk of excessively damp subfloors is minimised, reducing the chance of mould, fungal rot, and structural damage.
  • Health hazards related to poor ventilation, such as mould-related illnesses, are avoided.
  • Floor coverings are protected from moisture-related damage.

By adhering to the NCC, AS1884, and ATFA standards, builders can avoid these issues, ensuring long-lasting and high-performing flooring systems.

Subfloor Ground Clearance Guidelines

For Non-Treated Subfloor Materials

When non-termite-treated materials are used for the subfloor, the structure must allow for termite inspections. The following clearances apply:

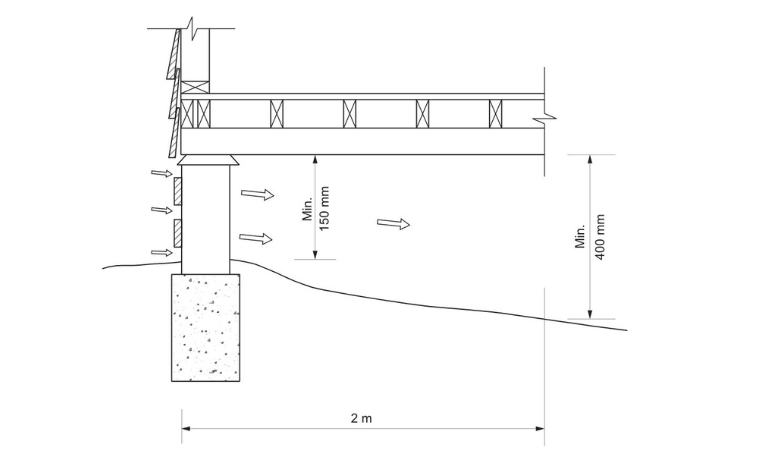

  • A minimum of 400mm clearance is required between the ground surface and the bottom of the bearer.
  • On sloping sites, the clearance can reduce to 150mm within 2 meters of an external wall. This exception accommodates varying site topography without compromising inspection access near the edges of the building.

For Termite-Treated Subfloor Materials

When termite-treated materials are used, the clearance requirements are more relaxed because the materials themselves are resistant to termite damage:

  • A minimum clearance of 150mm is sufficient between the ground surface and the bottom of the bearer. Since termite inspections are unnecessary, this reduced clearance simplifies construction without compromising the subfloor’s durability.
  • Reducing clearance to 150mm does increase the risk of moisture buildup due to reduced airflow. To mitigate this, additional measures such as mechanical ventilation, plastic on the ground, and using STRUCTAflor Ultimate should be considered.

These clearance requirements not only ensure compliance with the NCC but also help maintain optimal airflow and minimise the risk of structural issues.

Ventilation and Ground Moisture Control

Proper subfloor ventilation is critical to avoid the accumulation of damp air, which can lead to mould, fungal decay, and associated structural damage. The NCC specifies ventilation requirements based on climate zones, with humid regions requiring more ventilation than drier areas.

Key Considerations:

  • If timber flooring will be installed over the subfloor, increased ventilation is required, as detailed in the ATFA Timber Flooring Industry Standards.
  • For high-risk subfloors, additional measures may include:

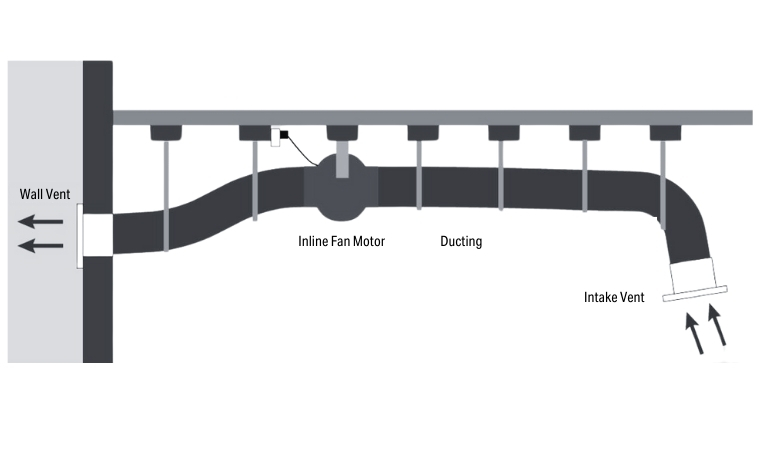

    • Mechanical ventilation to boost airflow.
    • Builders’ plastic laid over the soil to minimise moisture infiltration.
    • Installing STRUCTAflor Ultimate.

Ground Sloping: Keeping Water Out of the Subfloor

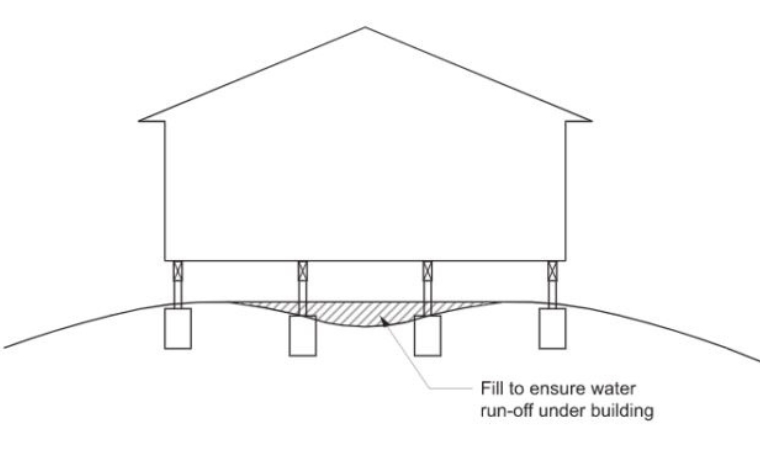

The NCC specifies that the ground surface must slope away from the subfloor to prevent water runoff from entering and pooling beneath the structure. Common sources of moisture, such as improperly directed downpipes or inadequate site drainage, can lead to water accumulation under the subfloor. Over time, this moisture can cause:

  • Wood Decay: Structural damage to the subfloor and surrounding areas.
  • Mould Growth: Health hazards for building occupants.
  • Foundation Issues: Compromised stability due to excessive moisture exposure.

Builders should ensure that proper site grading and drainage systems are in place to direct water away from the building foundation.

Laying Floor Coverings: Moisture Content Matters

Installing floor coverings over the subfloor requires a thorough inspection of the subfloor's moisture levels. In accordance with AS1884, the moisture content of the subfloor must be below 14% before proceeding with the installation of any floor covering, such as timber, vinyl, or carpet.

Steps for Moisture Management

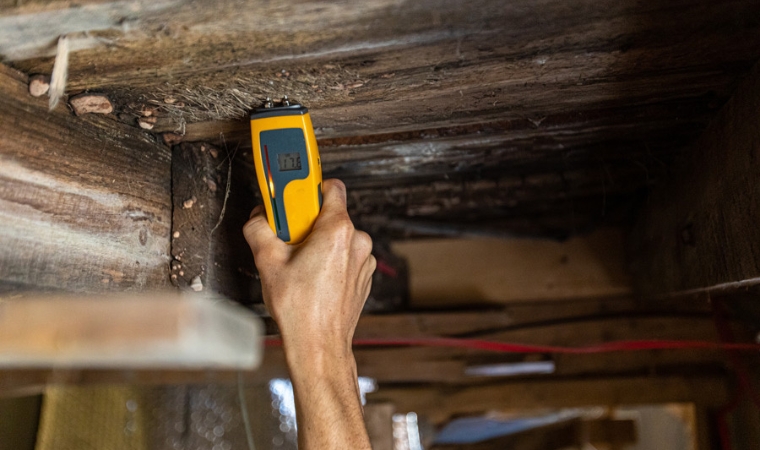

  1. Moisture Testing: Before installation, measure the subfloor’s moisture content using appropriate tools.
  2. Remedial Actions for Excess Moisture:
    • Improve subfloor ventilation by increasing airflow.
    • Apply builders’ plastic to reduce soil moisture intrusion.
    • Address drainage issues to prevent water pooling under the subfloor.
    • Installing STRUCTAflor Ultimate.

Failure to address high moisture levels can lead to:

  • Warping or Buckling: Floor coverings like timber or vinyl can become distorted.
  • Adhesive Failure: Glue used in some floor coverings may lose its effectiveness.
  • Mould Growth: High moisture content can create a breeding ground for mould under the floor, affecting both the subfloor and the floor covering.

By ensuring the subfloor is adequately ventilated and moisture levels are managed, builders can safeguard against these risks, delivering a high-quality and durable flooring solution.

Meeting subfloor clearance and ventilation requirements is a fundamental step when using STRUCTAflor, protecting both the flooring and the building from potential issues. By following standards outlined by the NCC, AS1884, and ATFA, builders and floor layers can ensure compliance, durability, and a healthier environment for occupants.
